We left off on voxels when I realized the direct lighting needed to be performed on the GPU. So I had to go and implement a new clustered forward renderer before I could do anything else. Well, I did that and now I finally have voxel lighting calculation being performed with the same code that renders lighting. This gives us the data we need to perform cone step tracing for real-time dynamic global illumination.

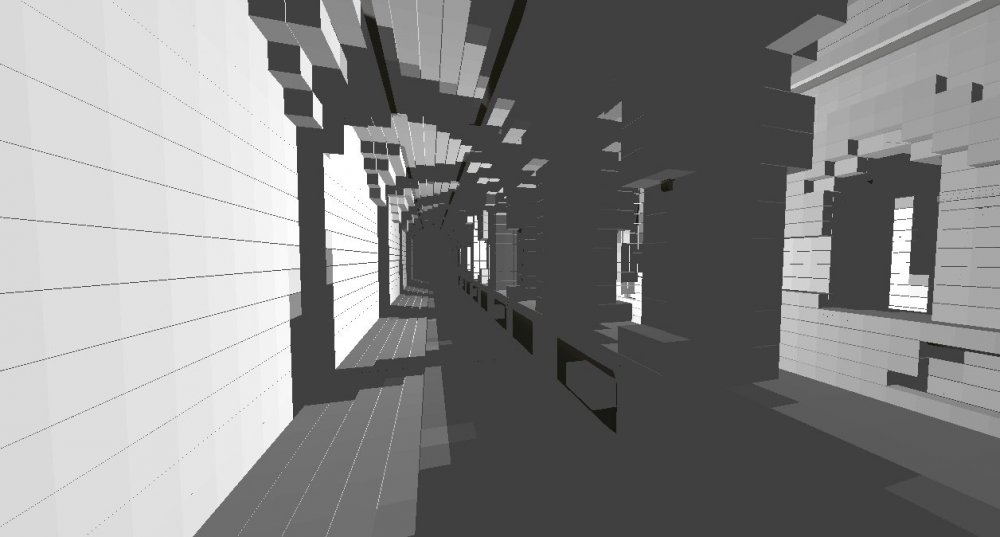

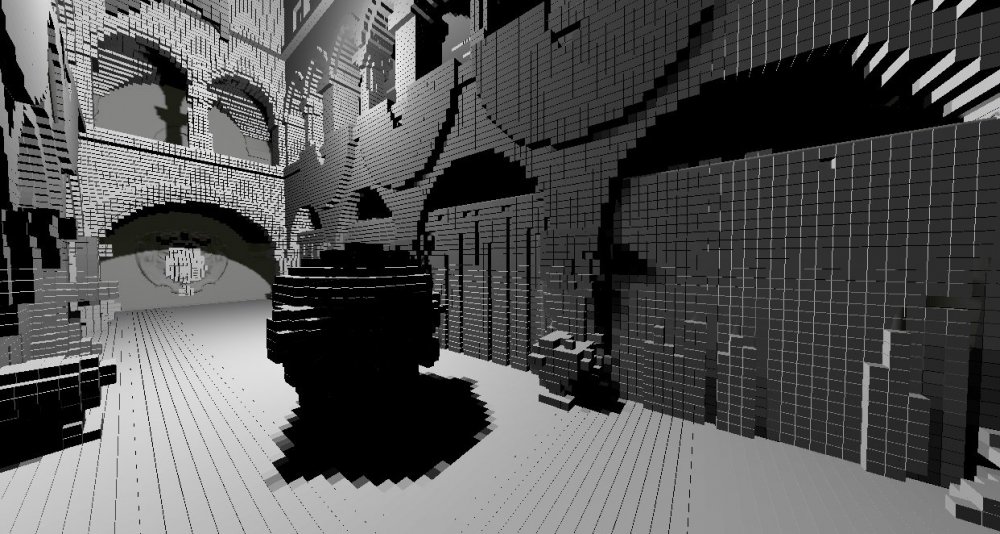

The shadows you see here are calculated using the scene shadowmaps, not by raycasting other voxels:
I created a GPU timer to find out how much time the lighting took to process. On the CPU, a similar scene took 368 milliseconds to calculate direct lighting. On the GPU, on integrated graphics, (so I guess it was still the CPU!) this scene took 11.61064 milliseconds to process. With a discrete GPU this difference would increase, a lot. So that's great, and we're now at the third step in the diagram below:
Next we will move this data into a downsampled cube texture and start performing the cone step tracing that gives us fast real-time GI.
