Dissolve shader problem

[Ghost]

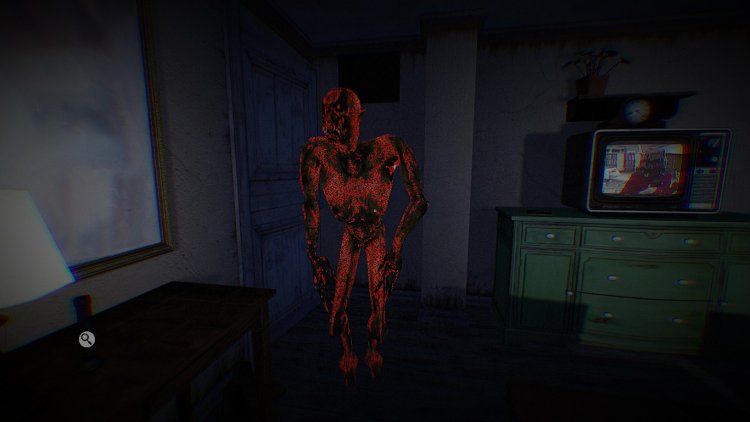

I'm using a dissolve shader by Shadmar, but my character is completely glowing red. What am I doing wrong? Even when I change the color of the dissolving, the texture of the character remains red.

[Ghost]

[Alienhead]

Is that an animated mesh ?

[havenphillip]

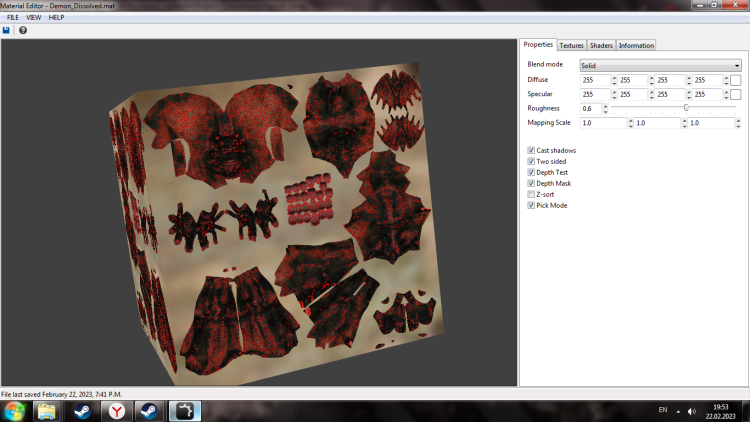

Is it red in the Material Editor? If so it could be your normals alpha channel.

Edit: I just saw the picture it looks like it is. The first thing I would do is check your fragData1 lines in the Fragment shader. They should look like:

    //Normals Output
    fragData1 = vec4(normalize(normal)*0.5+0.5,fragData0.a);
    fragData1.a = 1/255.0;

[Ghost]

On 2/23/2023 at 12:44 AM, havenphillip said:

Is it red in the Material Editor? If so it could be your normals alpha channel.

Edit: I just saw the picture it looks like it is. The first thing I would do is check your fragData1 lines in the Fragment shader. They should look like:

    //Normals Output
    fragData1 = vec4(normalize(normal)*0.5+0.5,fragData0.a);
    fragData1.a = 1/255.0;

It didn't help.

[Ghost]

On 2/23/2023 at 12:44 AM, havenphillip said:

Is it red in the Material Editor? If so it could be your normals alpha channel.

Edit: I just saw the picture it looks like it is. The first thing I would do is check your fragData1 lines in the Fragment shader. They should look like:

    //Normals Output
    fragData1 = vec4(normalize(normal)*0.5+0.5,fragData0.a);
    fragData1.a = 1/255.0;

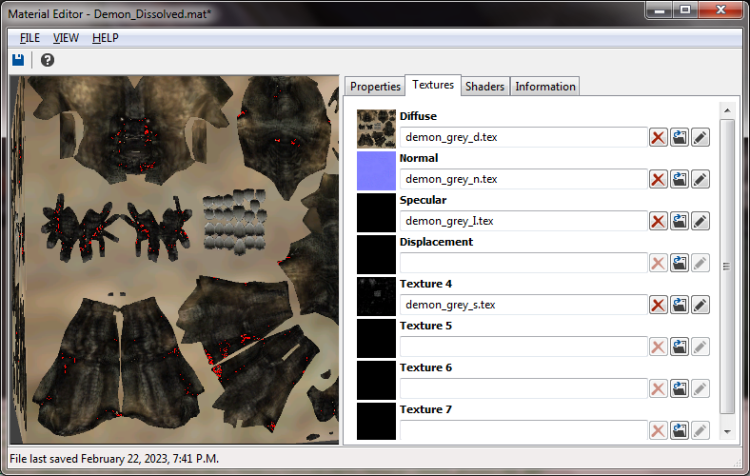

If I change the specular map to completely black, the red color  disappears, but the character stops responding to the lighting.



[Ghost]

On 2/22/2023 at 8:03 PM, Alienhead said:

Is that an animated mesh ?

Yes.

[havenphillip]

I'm snowed in I have limited power/internet. I'll get back to you on it but it looks like the specular affects it because he made the specular channel and the normals alpha channel the same. I tend to think Shadmar knows what he's doing and I'm not sure why he did it this way but I'm sure the fix will be pretty easy.

[havenphillip]

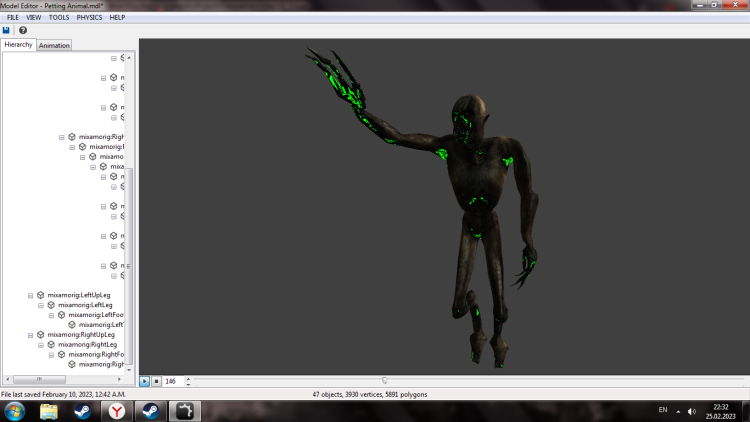

You can try changing the bottom of the shader like this. This works in the material editor for me.



#if BFN_ENABLED==1
    //Best-fit normals
    fragData1 = texture(texture15,normalize(vec3(normal.x,-normal.y,normal.z)));
    fragData1.a = fragData0.a;
#else
    //Low-res normals
    fragData1 = vec4(normalize(normal)*0.5+0.5,fragData0.a);
#endif
    int materialflags=1;
    if (ex_selectionstate>0.0) materialflags += 2;
    fragData1.a = materialflags/255.0;



    float specular = color_specular.r * 0.299 + color_specular.g * 0.587 + color_specular.b * 0.114;

    fragData2 = vec4(0.0,0.0,0.0,specular);

    vec3 dissolve_col = vec3(0,1,0);
    if (NoiseV<InvAlpha+0.03) fragData2 = vec4(dissolve_col,specular);

}



[Ghost]

10 hours ago, havenphillip said:

You can try changing the bottom of the shader like this. This works in the material editor for me.



#if BFN_ENABLED==1
    //Best-fit normals
    fragData1 = texture(texture15,normalize(vec3(normal.x,-normal.y,normal.z)));
    fragData1.a = fragData0.a;
#else
    //Low-res normals
    fragData1 = vec4(normalize(normal)*0.5+0.5,fragData0.a);
#endif
    int materialflags=1;
    if (ex_selectionstate>0.0) materialflags += 2;
    fragData1.a = materialflags/255.0;

    float specular = color_specular.r * 0.299 + color_specular.g * 0.587 + color_specular.b * 0.114;

    fragData2 = vec4(0.0,0.0,0.0,specular);

    vec3 dissolve_col = vec3(0,1,0);
    if (NoiseV<InvAlpha+0.03) fragData2 = vec4(dissolve_col,specular);

}

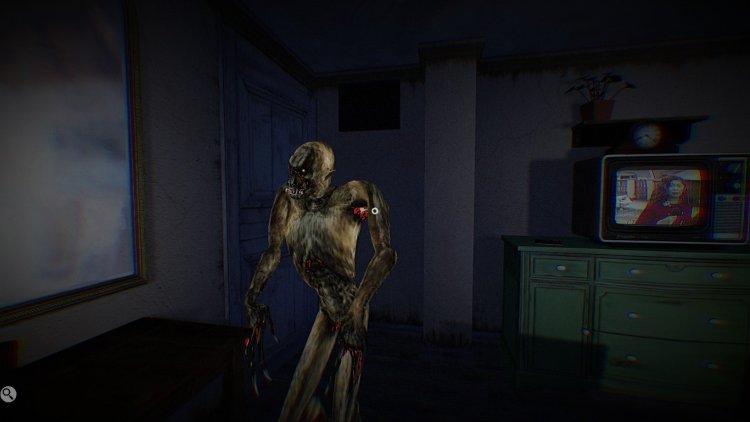

Partially helped, thanks. Alternatively, I can include this material directly after the character's death.
