LoadMap does not load saved in program code map and even remove light

[Dreikblack]

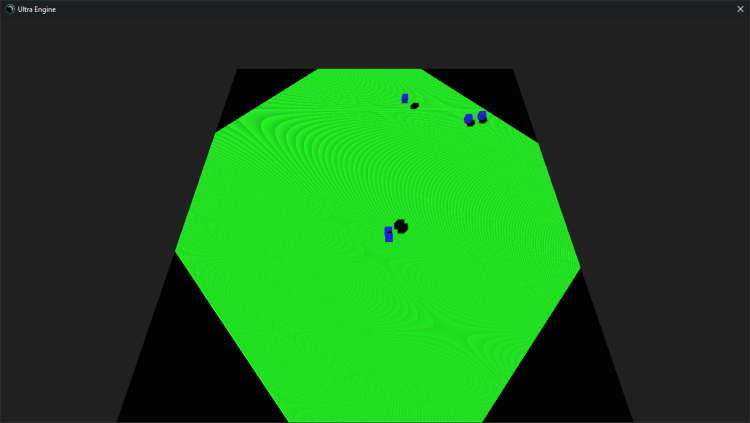

After save:

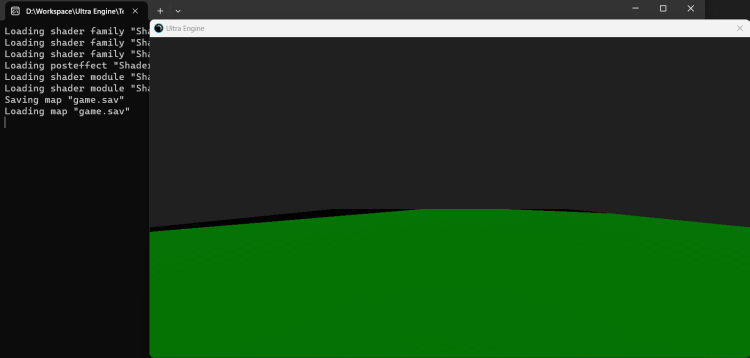

After load:

#include "UltraEngine.h"

using namespace UltraEngine;

int main(int argc, const char* argv[])
{
    //Get the displays
    auto displays = GetDisplays();

    //Create a window
    auto window = CreateWindow("Ultra Engine", 0, 0, 1280, 720, displays[0], WINDOW_CENTER | WINDOW_TITLEBAR);

    //Create a world
    auto world = CreateWorld();

    //Create a framebuffer
    auto framebuffer = CreateFramebuffer(window);

    //Create a camera
    auto camera = CreateCamera(world);
    camera->SetClearColor(0.125);
    camera->SetPosition(0, 1, -4);

    //Create light
    auto light = CreateBoxLight(world);
    light->SetRange(-10, 10);
    light->SetArea(15, 15);
    light->SetRotation(45, 35, 0);
    light->SetColor(2);

    //Create the ground
    auto ground = CreateBox(world, 20, 1, 20);
    ground->SetPosition(0, -0.5, 0);
    ground->SetColor(0, 1, 0);

    //Create a scene
    auto scene0 = CreateMap();
    scene0->AddEntity(ground);
    scene0->AddEntity(light);
    ground = NULL;
    light = NULL;

    auto scene = CreateMap();
    //Add some boxes
    for (int n = 0; n < 2; ++n)
    {
        auto box = CreateBox(world);
        box->SetColor(0, 0, 1);
        box->SetPosition(Random(-5, 5), Random(5, 10), Random(-5, 5));
        box->SetMass(1);
        scene->AddEntity(box);
    }

    //Main loop
    while (window->Closed() == false and window->KeyDown(KEY_ESCAPE) == false)
    {
        if (window->KeyHit(KEY_A))
        {
            auto box = CreateBox(world);
            box->SetColor(1, 0, 1);
            box->SetPosition(1, 1, 1);
            box->SetMass(1);
            scene->AddEntity(box);
        }
        if (window->KeyHit(KEY_D))
		{
			for (auto box : scene->entities)
			{
                if (box->As<Model>())
                    scene->RemoveEntity(box);
                break;
			}
        }
        if (window->KeyHit(KEY_S))
        {
            //Save the scene to a file
            scene->Save("game.sav");
        }
        //Load the scene when space key is pressed
        if (window->KeyHit(KEY_SPACE))
        {
            scene = LoadMap(world, "game.sav");
        }

        world->Update();
        world->Render(framebuffer);
    }
    return 0;
}



[Dreikblack]

Light stays in last build. Debugged a bit and i found out that scene have an entities after a load but they are invisible for unknown reason.

[Josh]

I do not understand what the purpose of scene0 in the above example is. I changed the code and it now works as I would expect.

The scene file format currently does not embed procedurally created model geometry into files. All models must be loaded from a file. This might be something we change in the future, but for now that is part of the design.

#include "UltraEngine.h"

using namespace UltraEngine;

int main(int argc, const char* argv[])
{
    //Get the displays
    auto displays = GetDisplays();

    //Create a window
    auto window = CreateWindow("Ultra Engine", 0, 0, 1280, 720, displays[0], WINDOW_CENTER | WINDOW_TITLEBAR);

    //Create a world
    auto world = CreateWorld();

    //Create a framebuffer
    auto framebuffer = CreateFramebuffer(window);

    //Create a camera
    auto camera = CreateCamera(world);
    camera->SetClearColor(0.125);
    camera->SetPosition(0, 1, -4);

    //Create light
    auto light = CreateBoxLight(world);
    light->SetRange(-10, 10);
    light->SetArea(15, 15);
    light->SetRotation(45, 35, 0);
    light->SetColor(2);

    //Create the ground
    auto ground = CreateBox(world, 20, 1, 20);
    ground->SetPosition(0, -0.5, 0);
    ground->SetColor(0, 1, 0);

    //Create a scene
    auto scene = CreateMap();
    scene->AddEntity(ground);
    scene->AddEntity(light);
    ground = NULL;
    light = NULL;

    //Add some boxes
    for (int n = 0; n < 2; ++n)
    {
        auto box = CreateBox(world);
        box->SetColor(0, 0, 1);
        box->SetPosition(Random(-5, 5), Random(5, 10), Random(-5, 5));
        box->SetMass(1);
        scene->AddEntity(box);
    }

    //Main loop
    while (window->Closed() == false and window->KeyDown(KEY_ESCAPE) == false)
    {
        if (window->KeyHit(KEY_A))
        {
            auto box = CreateBox(world);
            box->SetColor(1, 0, 1);
            box->SetPosition(1, 1, 1);
            box->SetMass(1);
            scene->AddEntity(box);
        }
        if (window->KeyHit(KEY_D))
        {
            for (auto box : scene->entities)
            {
                if (box->As<Model>())
                    scene->RemoveEntity(box);
                break;
            }
        }
        if (window->KeyHit(KEY_S))
        {
            //Save the scene to a file
            scene->Save(GetPath(PATH_DESKTOP) + "/game.sav");
        }
        //Load the scene when space key is pressed
        if (window->KeyHit(KEY_SPACE))
        {
            scene = LoadMap(world, GetPath(PATH_DESKTOP) + "/game.sav");
        }

        world->Update();
        world->Render(framebuffer);
    }
    return 0;
}



[Dreikblack]

10 hours ago, Josh said:

I changed the code and it now works as I would expect.

By saving nothing?

If i change boxes to brushes, they fall through ground brush but now being saved, but lightning is broken after load.

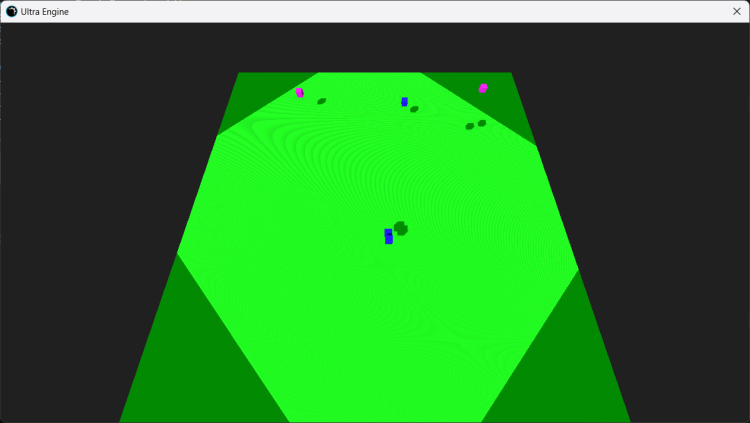

Before load:

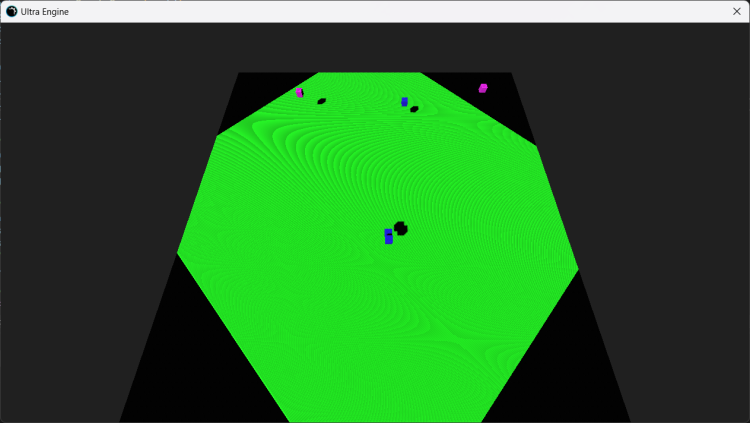

After load



#include "UltraEngine.h"

using namespace UltraEngine;

int main(int argc, const char* argv[]) {
    auto displays = GetDisplays();
    auto window = CreateWindow("Ultra Engine", 0, 0, 1280, 720, displays[0], WINDOW_CENTER | WINDOW_TITLEBAR);
    auto world = CreateWorld();
    auto framebuffer = CreateFramebuffer(window);

    auto camera = CreateCamera(world);
    camera->SetClearColor(0.125);
    camera->SetPosition(0, 15, -8);
    camera->SetRotation(70, 0, 0);

    auto light = CreateBoxLight(world);
    light->SetRange(-10, 10);
    light->SetArea(30, 30);
    light->SetRotation(45, 45, 0);
    light->SetColor(2);

    //Create the ground
    auto ground = CreateBoxBrush(world, 30, 1, 30);
    ground->SetPosition(0, -0.5, 0);
    ground->SetColor(0, 1, 0);

    //Create a scene
    auto scene = CreateMap();
    scene->AddEntity(ground);
    scene->AddEntity(light);
    //ground = NULL;
    light = NULL;

    //Add some boxes
    for (int n = 0; n < 5; ++n) {
        auto box = CreateBoxBrush(world, 0.5, 0.5, 0.5);
        box->SetColor(0, 0, 1);
        box->SetPosition(Random(-10, 10), Random(1, 5), Random(-10, 10));
        //box->SetMass(1);
        scene->AddEntity(box);
    }

    WString filePath = GetPath(PATH_DESKTOP) + "/game.sav";

    //Main loop
    while (window->Closed() == false and window->KeyDown(KEY_ESCAPE) == false) {
        if (window->KeyHit(KEY_A)) {
            auto box = CreateBoxBrush(world, 0.5, 0.5, 0.5);
            box->SetColor(1, 0, 1);
           // box->SetMass(1);
            box->SetPosition(Random(-10, 10), Random(1, 2), Random(-10, 10));
            scene->AddEntity(box);
        }
        if (window->KeyHit(KEY_D)) {
            for (auto box : scene->entities) {
                if (box->As<Brush>() && box != ground) {
                    scene->RemoveEntity(box);
                    break;
                }
            }
        }
        if (window->KeyHit(KEY_S)) {
            //Save the scene to a file
            scene->Save(filePath);
        }
        if (window->KeyHit(KEY_R)) {
            //Save the scene to a file
            if (scene->Reload(filePath)) {
                Print("Reloaded");
            }
        }

        //Load the scene when space key is pressed
        if (window->KeyHit(KEY_SPACE)) {
            scene = LoadMap(world, filePath);
        }

        world->Update();
        world->Render(framebuffer);
    }
    return 0;
}



[Dreikblack]

Reload does not restore deleted entities and don't delete that were added after a save. All those entities in same reloaded scene

[Josh]

I think we probably need a flag or save command that saves the state of objects without resaving the brush and other data. It seems like saving a scene is not exactly like saving a scene...

[Josh]

On 8/18/2024 at 5:39 PM, Josh said:

I think we probably need a flag or save command that saves the state of objects without resaving the brush and other data. It seems like saving a scene is not exactly like saving a scene...

What I meant to say is that saving a game state is not exactly the same thing as saving a scene.

[Josh]

Coming back to this now. I am testing this code and after I press S and then R, there is no visible change. Is there still an error in this behavior?



[Dreikblack]

9 hours ago, Josh said:

Coming back to this now. I am testing this code and after I press S and then R, there is no visible change.

Reload on R. Load on Space. But now in this example scene can't be loaded from saved file O_o

In console "Error: Failed to load scene..."

[Josh]

Okay, the LoadScene function doesn't know what a .sav file is, but if you change it to .map the space key will cause the scene to be loaded:

WString filePath = GetPath(PATH_DESKTOP) + "/game.map";

I see the areas outside the box light turn black. It looks like the ambient light level is 0.25 by default, but 0,0,0 is being saved to the scene file:

		"environment": {
			"ambientlight": [
				0.0,
				0.0,
				0.0
			],
			"fog": false,
			"fogangle": [
				0.0,
				15.0
			],
			"fogcolor": [
				1.0,
				1.0,
				1.0,
				1.0
			],
			"fogrange": [
				0.0,
				1000.0
			],
			"gitransmission": 2.0,
			"iblintensity": 1.0,
			"sunangle": [
				0.0,
				0.0
			],
			"suncolor": [
				0.0,
				0.0,
				0.0
			]
		}

Is that the only thing wrong? Reload should not restore deleted entities, but LoadScene will.

[Dreikblack]

20 minutes ago, Josh said:

Is that the only thing wrong?

In terms of bugs, i think so

[Josh]

Okay, I need to redo how the editor world settings are stored. The way I did it is a little weird, and it doesn't translate well into game saving / loading...

[Josh]

My solution is to add save flags SAVE_WORLDPROPERTIES and SAVE_NAVMESHES. Those things will be skipped if the flags are not specified in the save flags parameter.
