Entity materials/collider saving

[Alienhead]

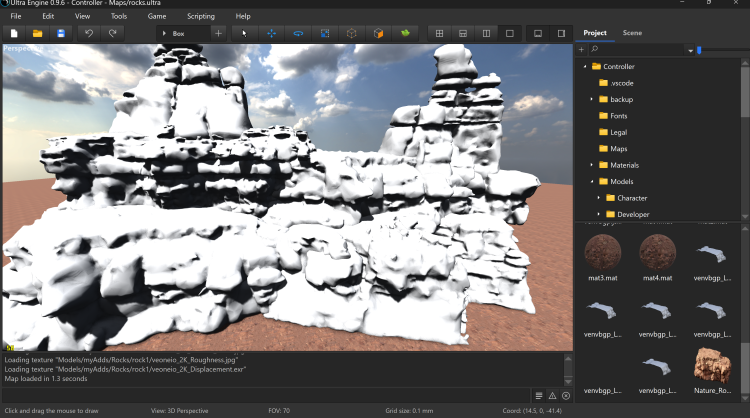

I just spent many many hours converting, and texturing some rocks. then saved.
I just came back into the editor the following day and loaded my map to find that none of the models/mats or colliders got saved,.

So I redone a few of the rock formations and exited out the editor again..   To my surprise nothing got saved AGAIN.
These models are lod 0, 1 to 3 with degrading materials on each LOD level.. the collider is based off the last LOD model.

[Alienhead]

Colllider seems to be saving now as well as the material.. but no LOD's are saved.

[Josh]

Is this goatommetry's castle valley pack?

I need a sample model to test.

[Alienhead]

No this is straight media from Sketchup Warehouse



[Josh]

I will need to download the model in order to test it.

[Alienhead]

...



[Josh]

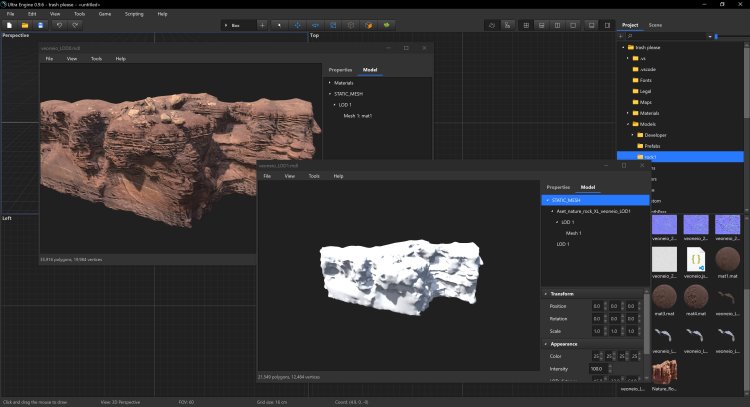

Okay, so I found that the LOD models contain extra hierarchy. This is bad because the editor can't correlate which limb matches which. Maybe I can improve this, but the easiest solution is to collapse the models first. Once I did this, the LODs loaded and saved with no problems. I generated a convex decomposition collider and that seemed to work fine.

veoneio.zip

(This model contains one additional LOD.)

When importing large numbers (about 100) of complex models, I had the best results writing a script that automated the process. You can call Collapse() and AddLod() in a script and use the Scripts > Run Script menu item to execute it.





[Alienhead]

Is LOD 4  allowed ?



[Josh]

The engine supports up to four LODs. It will be important to enforce this when we move culling over the a compute shader, because the data layouts have to be very strict.

[Alienhead]

So I should plan and start building with 4 lods 'now'?



[Josh]

Well, that's the maximum I thought would be necessary. The GPU will have to allocate a buffer equal to the number of LODs times the number of instances of the model that exist in the world, times four, which I guess is not that much memory. I could probably support more but four seems like a nice number.

The culling routine might also have to iterate through the number of LODs for each instance in order to be dynamically uniform.
