Help me with components in flowgraph editor?

[Yue]

 I have two components, each in a different door, but when I open any door the light comes on, would you expect it to work only with the ones I have connected in flowgraph editor?

[Josh]

Yes.

[Yue]

I can't understand, I only have two connected between the editor, but it happens that the others are not connected, but still the signal is triggered and the light comes on.

[Josh]

Unfortunately I have nothing to debug so I cannot tell you the answer.

Maybe you have some global variable declared that is being shared by all instances of the component.

[Yue]



I have simplified the code, I am going to put the rest and show it later, so it works very well.



KaraConsole = {}

KaraConsole.name = "KaraConsole"

KaraConsole._inside = false

function KaraConsole:Load()



end



function KaraConsole:Collide(ent, pos, normal, speed)

    if ent.name == "controller" then

        self._inside = true



    end

end



function KaraConsole:Update()



    if  self._inside == true then

        self:FireOutputs("doorOpened")

    end



end



RegisterComponent("KaraConsole", KaraConsole)

return KaraConsole

[Yue]

@Josh

Something is definitely wrong with my code.

Without being connected the light comes on.  Shall I send you the project?





KaraConsole = {}

KaraConsole.name = "KaraConsole"



local ICON_OWNER = nil

local doorTypes = { "Simple", "Double", "Hangar" }



local s = ""



function KaraConsole:Load()





    self.doorTypeIndex = self.doorType or 0 -- Recibe el índice del JSON

    self.doorType = doorTypes[self.doorTypeIndex + 1] or "Simple"



    self.linkedDoorA = self.linkedDoorA

    self.linkedDoorB = self.linkedDoorB

    self.requireInput = (self.requireInput ~= false)

    self.openSpeed = self.openSpeed or 0.01

    self._doorTravelDistance = self._doorTravelDistance or 1.9 -- Distancia para Simple y Double

    self._doorTravelDistanceHangar = self._doorTravelDistanceHangar or 2.5 -- Distancia para Hangar



    self._inside = false

    self._wasInside = false

    self.state = "closed"

    self.closeStartTime = nil

end



function KaraConsole:Start()

    self._doorA = self.linkedDoorA

    self._doorB = self.linkedDoorB



    if self._doorA then

        self._doorAOrigPos = self._doorA:GetPosition()



        if self.doorType == "Simple" or self.doorType == "Double" then

            local offsetA = Vec3(self._doorTravelDistance, 0, 0)

            self._doorATargetPos = TransformPoint(offsetA, self._doorA, nil)

        elseif self.doorType == "Hangar" then

            self._doorATargetPos = Vec3(

                self._doorAOrigPos.x,

                self._doorAOrigPos.y + self._doorTravelDistanceHangar,

                self._doorAOrigPos.z

            )

        end

    end



    if self.doorType == "Double" and self._doorB then

        self._doorBOrigPos = self._doorB:GetPosition()

        local offsetB = Vec3(-self._doorTravelDistance, 0, 0)

        self._doorBTargetPos = TransformPoint(offsetB, self._doorB, nil)

    end

end



function KaraConsole:Collide(ent, pos, normal, speed)

    if ent.name == "controller" then

        self._inside = true

        self.closeStartTime = nil

    end

end



function KaraConsole:Update()

    if not _G.uiLevel01 then return end



    local inside = self._inside

    local wantIcon = inside and self.requireInput and (self._doorA or self._doorB)



    if wantIcon and ICON_OWNER ~= self then

        _G.uiLevel01:ShowEIcon(); ICON_OWNER = self

    elseif ICON_OWNER == self and not wantIcon then

        _G.uiLevel01:HideEIcon(); ICON_OWNER = nil

    end



    if wantIcon and ActiveWindow():KeyHit(KEY_E) then

        self.state = (self.state == "open" or self.state == "opening") and "closing" or "opening"

        self.closeStartTime = nil

        _G.uiLevel01:HideEIcon(); ICON_OWNER = nil

    end



    if inside and not self.requireInput and self.state == "closed" then

        self.state = "opening"

    end



    if self.state == "opening" then

        s = self.state

        if self._doorA then self:_moveDoor(self._doorA, self._doorATargetPos) end

        if self.doorType == "Double" and self._doorB then self:_moveDoor(self._doorB, self._doorBTargetPos) end

        if (not self._doorA or self:_isAtPos(self._doorA, self._doorATargetPos)) and

           (not self._doorB or self:_isAtPos(self._doorB, self._doorBTargetPos)) then

            self.state = "open"

            s = self.state



        end

    elseif self.state == "closing" then

        if self._doorA then self:_moveDoor(self._doorA, self._doorAOrigPos) end

        if self.doorType == "Double" and self._doorB then self:_moveDoor(self._doorB, self._doorBOrigPos) end

        if (not self._doorA or self:_isAtPos(self._doorA, self._doorAOrigPos)) and

           (not self._doorB or self:_isAtPos(self._doorB, self._doorBOrigPos)) then

            self.state = "closed"

        end

    end



    if self._wasInside and not inside and (self.state == "opening" or self.state == "open") then

        self.closeStartTime = Millisecs()

    end



    if self.closeStartTime and Millisecs() - self.closeStartTime >= 5000 then

        self.state = "closing"; self.closeStartTime = nil

    end



    self._wasInside = inside

    self._inside = false



   if s == "opening" then



        self:FireOutputs("doorOpened")

      s = self.state

   end



end



function KaraConsole:_moveDoor(door, target)

    local pos = door:GetPosition()

    local dir = (target - pos):Normalize()

    local step = dir * self.openSpeed

    if (target - pos):Length() <= self.openSpeed then

        door:SetPosition(target)

    else

        door:SetPosition(pos + step)

    end

end



function KaraConsole:_isAtPos(door, target)

    return (door:GetPosition() - target):Length() <= self.openSpeed

end



RegisterComponent("KaraConsole", KaraConsole)

return KaraConsole

[Yue]

@Josh

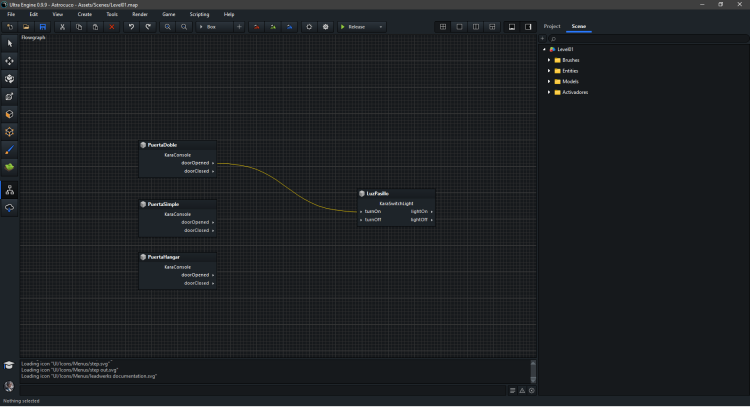

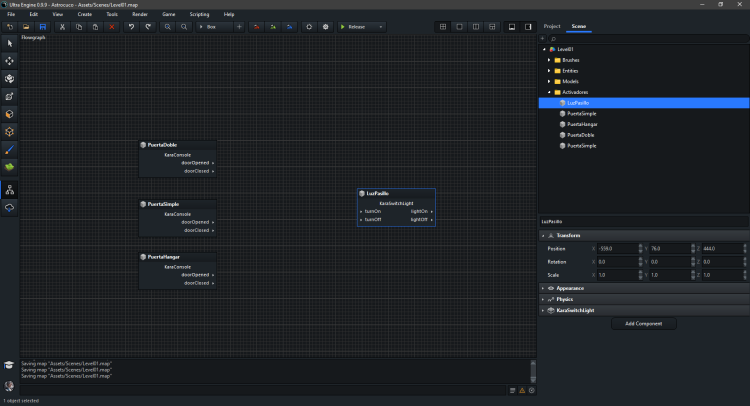

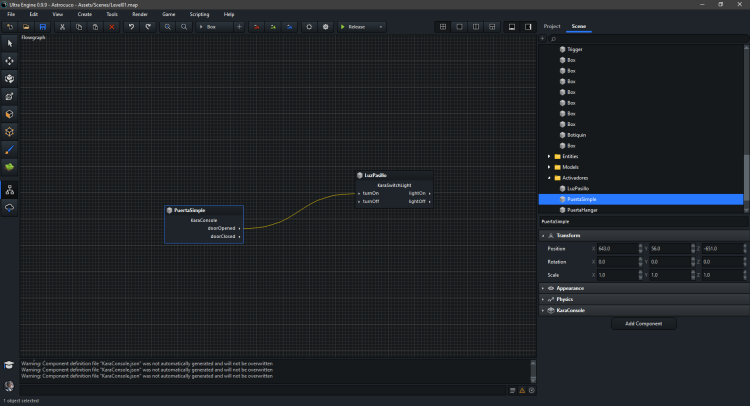

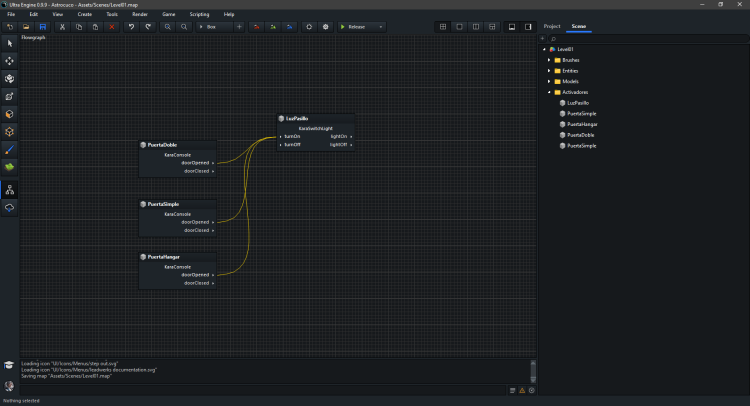

I think it is not the code, it is that it does not save the data of the connected nodes, I notice this if I exit the editor and load it again, it does not always happen.

The save button does not work in the editor, I go back to 3D and hit save, sometimes it works and sometimes it doesn't, that's the confusion.
