Best way to converts some b3d to gmf

[NRasool]

Hey there

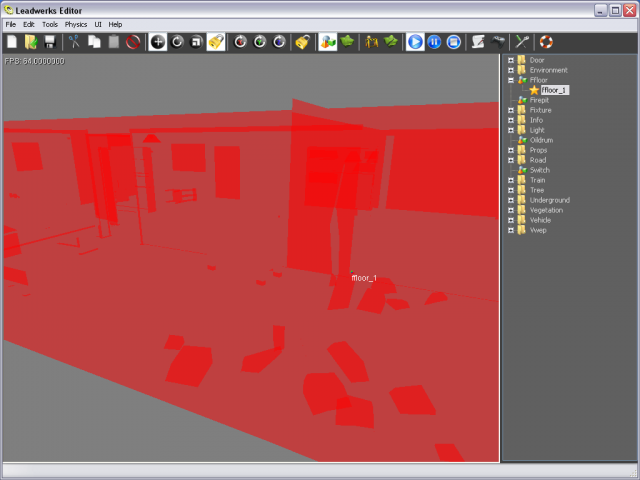

Whats the best way to convert b3d files to gmf? I have been using unwrap3d v2. I first load up batch process using Josh converter all .jpg files to .dds. Then I load in the b3d file into unwrap3d and change the textures 1 by 1 to use the .dds file, then save it as a gmf file. Once I have done this, I use the genmats.exe which is in the tools part of the SDK folder to generate the .mat files, but when I load it into the editor by copying the files including texture, it does not bring in the texture. All I see is what's attached to this thread, all red



Has anyone got any advise



Many thanks



Kind Regards

[Marleys Ghost]

Is it selected in that pic?

[Canardia]

Ultimate Unwrap V2 and non-pro does not export gmf files correctly. You need Ultimate Unwrap V3 pro to be able to export gmf files correctly.

[Josh]

All versions of Unwrap3D that support GMF export should work fine.



Please post your files.

[VicToMeyeZR]

V3?? When was that released?



Hmm guess I am way behind on the curve

[Marleys Ghost]

V3?? When was that released?





Quite a while now, current version is v3.22 ... V3 was released around the end of 2007 I think.

[VicToMeyeZR]

I'm confused..

[Pixel Perfect]

Then I load in the b3d file into unwrap3d and change the textures 1 by 1 to use the .dds file

Just a tip ... you don't need to do this if you don't want to as Leadwerks simply uses the filename of the embedded texture and ignores the extension. So if your texture name was text1.png it will look for a material file called text1.mat and so long as that references the dds file (it doesn't even need to be the same name) all will be well.



I seem to recollect the red look can be caused by having the animation option selected when exporting models with no animation. Ensure you don't have this option selected when exporting to gmf. Although the screen shot does look like its just selected in the editor!

[Marleys Ghost]

I'm confused..





About ?

[VicToMeyeZR]

I thought I had 2.0 because I remember a post about the serial not including the 3.0, but maybe I was thinking about something else.

[NRasool]

Hi everyone



Mm still no luck with what you have mentioned, here is the files zipped up. Please note that this was a custom job done for me, many years ago, but it is still done for myself :-)



Anyway here it is



<edit no need thanks to Marley>



Kind Regards

[Marleys Ghost]

DL'ing now will have a look for you.

[NRasool]

Many thanks Marleys Ghost



It prob just me, but I can't see where I am going wrong here :-)



Really appreciate your time on this

[Marleys Ghost]

No problems I have it working .. when you save out to .gmf from UU3D for this type of static model make sure you uncheck



Export Bones
Export Animation



[NRasool]

Hey Marley

No problems I have it working .. when you save out to .gmf from UU3D for this type of static model make sure you uncheck



Export Bones
Export Animation





Ahh bless you, thank you sooo much!!!, that worked

[Marleys Ghost]

You're welcome NRasool, glad to help.
