Fence shadowing

[bandrewk]

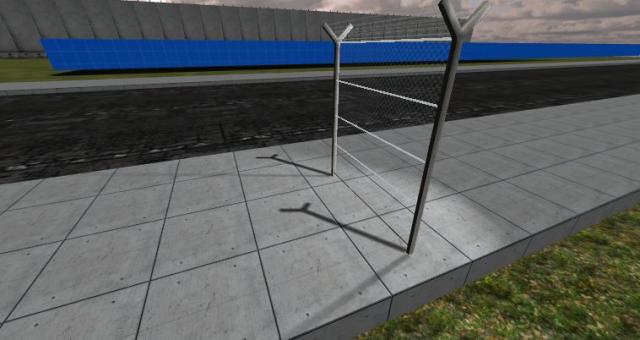

Hi, how do I get my fence to drop shadows for the chain-link?







[YouGroove]

I think there is a special shader to use with alpha mask.

[bandrewk]

I tried all shadow shaders I could find, makes no difference.



[YouGroove]

Could you attahc your file for us to try ?

[bandrewk]

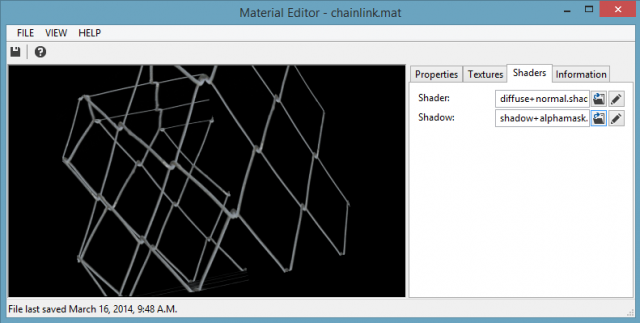

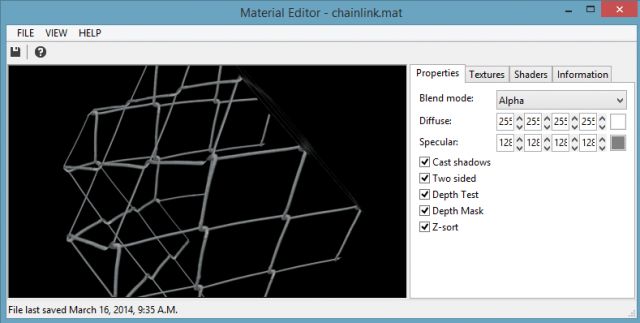

See attachment. I also found this thread but it wasn't of help.



- Removed Attachment -

Edited March 17, 2014 by bandrewk

[YouGroove]

I tested, and choose for material :

shader : diff/normal/spc/alpha (you didnt have put alpha shader in your model)

shadow : with alphamsk

But it don't work.



Could you post in bug reports with your file ?

[bandrewk]

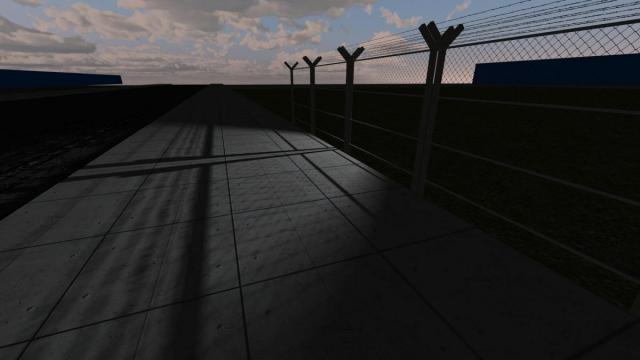

I got the shadowing working correctly, thank you Josh!

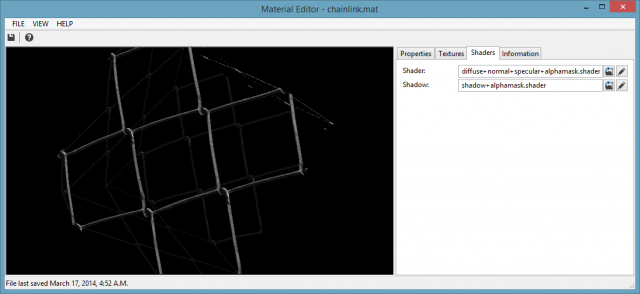

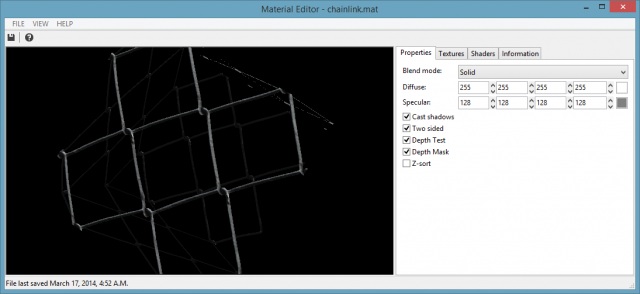

I had to disable Z-Sorting, set the blend-mode to SOLID and select both alphamask shaders.





[gamecreator]

Thanks for sharing that.

[YouGroove]

Should be in some shader official docs.

[DudeAwesome]

yeah shader docs would be very helpful.

[Flexman]

Another gotcha from LE2 days
