Physically Based Rendering (C++)

Mattline1

4,620 views


(Wait all day for a bus and two turn up at once)



As part of my final year university work I’ve been looking into Physically Based Rendering(PBR) and its implementation. PBR is a method of generating images that takes physical values into account, this means lighting behaves much more predictably and accurately.





This link https://www.fxguide.com/featured/game-environments-parta-remember-me-rendering/ gives a fantastic, and in depth look into how PBR works in Remember Me. Notably, PBR systems aren’t all the same, often times they use different algorithms to generate images, and there are many ways to generate reflections for them.

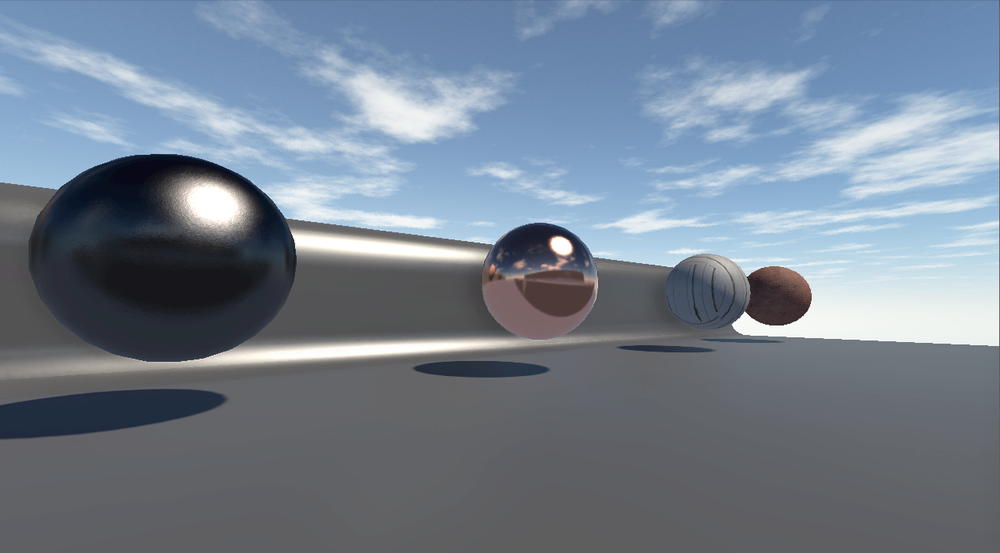

This PBR uses a runtime rendered cubemap to generate reflections and ambient diffuse lighting on objects, nice for avoiding the flat lighting in shadowed areas problem. It then uses a physically based BRDF to generate specular highlights.



Currently static models and animated models have shaders, there is also preliminary decal support. All light types are supported with shadowing. The materials use metalness/roughness maps.

There are a number of example assets in the zip files.



You’ll need the C++ version of Leadwerks for this one, the reflection generation code is written in C++ and relies on a number of OpenGL calls to function properly. This does mean however that you can generate a new reflection map at any point.



I was aiming for a similar system to what was used in GTAV. For that game a low poly, diffuse only environment map is generated each frame in order to render reflections. However for my work the performance isn’t quite high enough to generate a reflection map per frame yet.



Reflections are generated as cube maps, that map is then sampled with GL_SEAMLESS_CUBEMAPPING enabled, the lowest mipmap is used for diffuse lighting then higher mip values are used for the specular reflections.



(If you are using the lua version, you may be able to use pre-blurred cube-maps and get acceptable results)



Here’s an example of the shaders working on a complex PBR asset. Built by Andrew Maximov, http://polycount.com/discussion/130641/cerberus-ffvii-gun-next-gen-asset-giveaway



Without-PBR

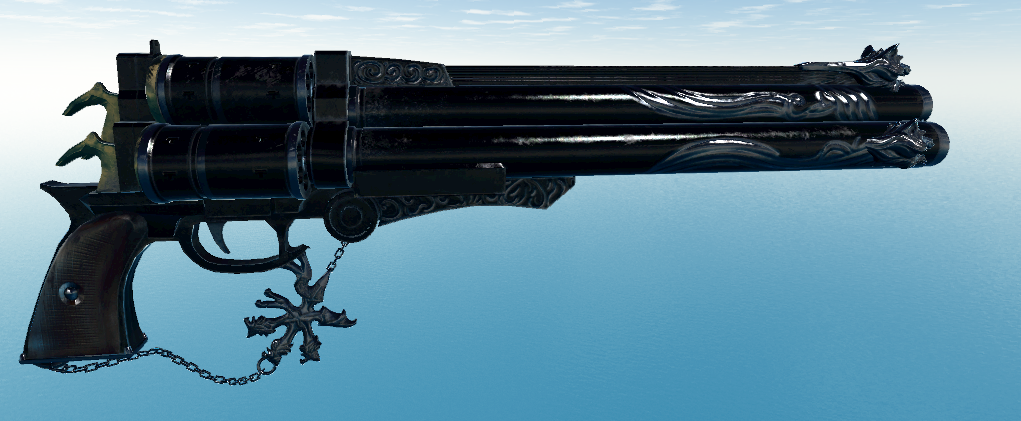

With-PBR






I’m looking for feedback on how robust the system is, so here is a download link, you're free to use this as you please.

https://dl.dropboxusercontent.com/u/23307723/Leadwerks_PBR.zip





Issues

I’ve had to use the alpha channel for gloss values so transparency is a bit borked. Decals suffer from the alpha problem as well.

I’ve looked into binding reflection textures to the lighting shaders which would avoid the alpha hijacking. But it doesn’t seem to work if any post processing or water is used. If anyone can point me in the right direction here it would be appreciated.



my implementation uses normalised Blinn-Phong for the distribution term, Schlick’s approximation for Fresnel, and Smith’s shadowing function for the geometry term.



8 Comments


Recommended Comments

Well done, will check it out! Yeah, I was thinking along similar lines. By the way, I used the upper 4 bits of the material flags (normal alpha) channel to store metalness (it should normally just be 1 or 0 anyway), and roughness in fragData2.a, thus could leave the transparency alpha as is.

Share this comment


Link to comment

@Rastar Thanks, I did think about using material flags for the metalness. My concern was it may result in harsh transitions on objects with both metal and dieletric areas. It's a good solution though.

Share this comment


Link to comment

Screen-space reflections would definitely work, I believe that's how ue4 generates some of it's reflections. I will probably look into this.

Share this comment


Link to comment

@genebris I've been looking at Leadwerks project templates system, I will probably try and get that working over the next day or so, that should simplify setup. You'll be able to generate a new project with everything already setup then.

Share this comment


Link to comment

@Mattline1 I have messed with the template system before, if you need help, PM me l although you'd probably get it setup yourself as it's very straight forward.



Also, Did you try messed with the spec values for the gloss value?

Share this comment


Link to comment
