Can You Move A Collision Mesh With A Model Without Code?

Question

I tried to make a simple gate that lowers when a button is pressed.  The gate itself works perfectly; a single bone moves it up or down.


However, the problem is that I can't tie the collision mesh to it in any way so that it moves with the gate.  I've tried:

1.  Skinning the collision mesh as well with the gate bone (Leadwerks converted it into a non-physics model)
2.  Skinning the collision mesh with its own bone and moving both bones together (same conversion)
3.  Creating a collision mesh in the model editor (did not move with model)


Must the collision mesh be moved separately by code or is there a way to make this work?

Share this post


Link to post

16 answers to this question

Recommended Posts

  • 0

CSG shape as a child in the editor?

Share this post


Link to post
  • 0

Yes.  The collision box in the last picture doesn't move at all.  I generated it at animation frame 0 but when I animated the model (in the screenshot it is frame 32) the collision box didn't move down.  This makes sense because a model could be complex and anything could be going on, including multiple pieces moving in different directions but I wanted to test to see what would happen.  Ideally you could tie a collisionmesh to a bone but Leadwerks doesn't seem to support that.

I was mostly just looking for some sort of alternative, short of doing it by code.

Share this post


Link to post
  • 0

This was for the Ludum Dare 46 competition a week ago and I ended up moving the gate with a collision mesh by code.



  • Like 1

Share this post


Link to post
  • 0

Is there a reason why you don't just use the joint possibility as in the examples/tutos for doors opening?

Share this post


Link to post
  • 0

Do you have a link to the tutorial page?  The ones I found use code to move the doors.  That said, I did think of two "workarounds" since then that I haven't tried yet:

  • Joining the shape and the model as a prefab.  I figure this should work.
  • Using a single line in the code to parent the door and collision shape together.  The point of this thread was to avoid code but it's not the worst to do this during map initialization.

Share this post


Link to post
  • 0

No sorry I mean the tutorial as you can find one in the examples map Josh made.

So you want to avoid loading time by initialising the map am I right?

I think in the principle, moving a shaped element and becoming consequences of this has something to do with massed object and that s why joints and no animation will be used.

It seems to run as if animations are into the domain of "decoration" while shape, collision, mass more like supporting "behind the scene" ground elements. Sorry not sure if I can express this good.

Share this post


Link to post
  • 0

It was mostly just curiosity about whether or not I could combine an skinned model with a collision mesh directly in a modeling program but seems not.  But there are several ways to easily do this by either code or the above-mentioned methods so it's fine.

Share this post


Link to post
  • 0
1 hour ago, Rick said:

CSG shape as a child in the editor?

Would this work?  How would it know which bone to follow if there's more than one bone?  Or imagine if there was a double door in a single mesh (each with a bone).  Hmm.  I guess a prefab wouldn't work either for this reason.

Share this post


Link to post
  • 0
On 5/20/2020 at 2:21 AM, Rick said:

CSG shape as a child in the editor?

I think this is worth a try. The invisible shape CSG shape should be parented to each bone, it is a good idea. (you could seperate the mesh and passing them to each bone simply with blender if necessery)

Share this post


Link to post
  • 0
6 hours ago, Marcousik said:

The invisible shape CSG shape should be parented to each bone

Ah, of course.  I think this could work!

Share this post


Link to post
  • 0

Tested and it seems to work!  I created a box (door) with a bone skinned to it and moved it around and exported it as an animated FBX.  Then I created another box (doorcol) with just the collision mesh as another exported FBX.  I then parented doorcol to door in a scene and then saved the whole thing as a prefab.
Then I used the following code to load and animate the prefab:

#include "Leadwerks.h"

using namespace Leadwerks;
Entity* entity = NULL;

int main(int argc, const char *argv[])
{
	Leadwerks::Window* window = Leadwerks::Window::Create();
	Context* context = Context::Create(window);
	World* world = World::Create();

	Camera* camera = Camera::Create();
	camera->Turn(0, 15, 0);
	camera->Move(-1, 1, -4);
	camera->SetDebugPhysicsMode(true);  //  Set camera to see physics shapes

	Light* light = DirectionalLight::Create();
	light->SetRotation(35, 35, 0);

	//  Make a sphere
	Model* sphere = NULL;
	sphere = Model::Sphere();
	sphere->SetColor(1.0, 0.0, 0.0);
	sphere->SetPosition(0, -1, 0);


	Entity *model = Prefab::Load("Prefabs/thedoor.pfb");
//	Entity *model = Model::Load("Models/door/door.mdl");  //  Sanity check


	while(true)
	{
		if(window->Closed() || window->KeyDown(Key::Escape)) return false;

		model->SetAnimationFrame(Leadwerks::Time::GetCurrent() / 30.0, 1, 0);

		Leadwerks::Time::Update();
		world->Update();
		world->Render();
		context->Sync();
	}
	return 0;
}

The result (yes, the animation is sloppy but it was just to test it; and I put the collision off to the side so it's easier to see):
Thank you everyone for the help.


  • Like 2

Share this post


Link to post
  • 0

I just worked today on this model and I had to think about this thread ^^

Somehow the same problematic happens now to me and I do not see any solution if not seperate the mesh and use a joint 🤔🤔

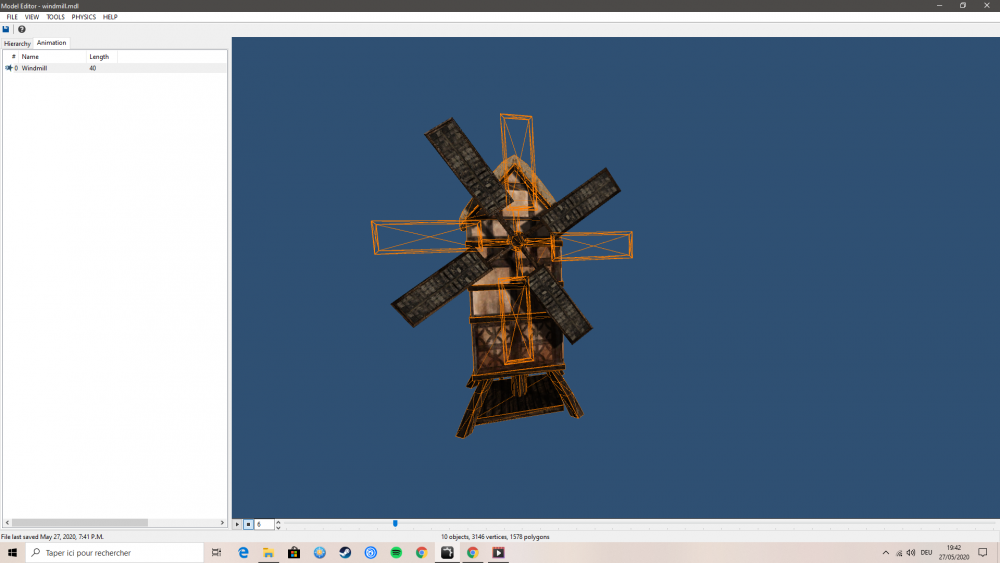

Here the animation is turning the propeller (without shape!), but I need the poly mesh as shape so the player can enter in the building...


Share this post


Link to post
